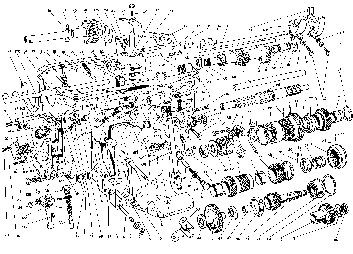

Exploded view of early type three-speed synchromesh transmission

1 Transmission case
2 Control shaft bush
3 Differential cover stud
4 Differential cover stud
5 Differential cover dowel
6 Differential coverjoint washer (upper)
7 Differential coverjoint washer (lower)
8 Differential cover stud nut
9 Washer
10 Washer
12 Differential cover stud nut
13 Washer
14 Flywheel housing stud
15 Flywheel cover stud (long)
16 Front cover stud (long)
17 Front cover stud (short)
18 Front cover dowel
19 Flywheel housing dowel
20 Idler gear bearing
21 Bearing circlip
22 Operating lever pin
23 Exhaust pipe bracket
24 Drain plug
25 Plug washer
26 Oilstrainer
27 Sealing ring
28 Strainer bracket 29 Screw to strainer
30 Washer
31 Screw to casing
32 Washer
33 Oil suction pipe
34 Joint washer
35 Pipe flange
36 Joint washer
37 Pipe screw
38 Washer
39 Sealing ring
40 Primary gear
41 Gear bush (front)
42 Gear bush (rear)
43 Idler gear
44 Idler gear thrustwasher
45 First motion shaft gear
46 Nut
47 Lockwasher
48 Reverse gear
49 Bush
50 Reverse shaft
51 Reverse operating lever
52 Pivot pin circlip
53 Layshaft
54 Laygear
55 Locating plate
56 Bearing
57 Distance piece
58 Retaining ring
59 Thrustwasher (rear)
60 Thrustwasher (front)
61 First motion shaft
62 First motion shaft roller bearing
63 First motion ball-bearing
64 Circlip
65 Third motion shaft
66 Third motion shaft bearing
67 Circlip
68 First speed gear
69 Synchronizer ball
70 Spring
71 Second speed synchronizer plunger
72 Baulk ring
73 Second speed gear thrustwasher
74 Secondspeedgear
75 Bush
76 Interlocking ring
77 Third speed gear
78 Bush
79 Third motion shaft thrustwasher
80 Thrustwasherpeg
81 Spring
82 Third/top synchronizer
83 Ball
84 Spring
85 Baulk ring
86 Bearing retainer
87 Lockwasher
88 Screw
89 Bearing shim
90 Final drive pinion
91 Nut
92 Washer
93 Speedometer pinion
94 Bush
95 Bush assembly
96 Joint washer
97 Bush screw
98 Washer
99 Washer
100 Speedometer spindle and gear
101 Endplate
102 Plate joint
103 Screw
104 Washer
105 Reverse fork
106 Reverse fork rod
107 Fork rod selector
108 First and second speed fork
109 First and second speed fork rod
110 Third and fourth speed fork
111 Third and fourth speed fork rod
112 Selector screw
113 Washer
114 Locknut
115 Plunger fork end
116 Plunger spring
117 Plug
118 Plug washer
119 Change speed gate
120 Gear change shaft
121 Oil seal
122 Operating lever
123 Key
124 Lever screw
125 Washer
126 Change shaft lever
127 Lever screw
128 Washer
129 Remote control shaft
130 Shaft lever
131 Lever screw
132 Washer
133 Reverse check plunger
134 Plunger spring
135 Spring plug
136 Plug washer
137 Front cover
138 Cover joint
139 Cover screw
140 Washer
141 Mounting adaptor stud
142 Washer
143 Nut
144 Crankcasejoint washer rh
145 Crankcase joint washer lh
146 Bearing cap oil seal
147 Transmission to crankcase screw
148 Transmission to crankcase screw (long)
149 Transmission to crankcase stud
150 Nut
151 Washer
152 Gear change remote control shaft lubricator
153 Lubricator washer
